400Gb/S OSFP SR8 100m OM3 MMF Module With FEC / MPO-16 Connector

Product Categories
Color Optic Limited
Contact Now

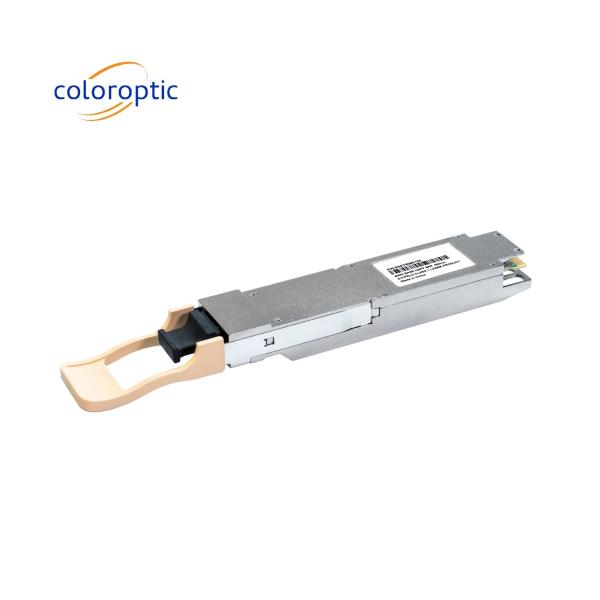

400Gb/S OSFP SR8 100m OM3 MMF Module With FEC / MPO-16 Connector

  • 1
  • 2

Brand Name : coloroptic

Model Number : C-OS4H85SC

Certification : UL, TUV, CE, RoHS, REACH, CMRT

Place of Origin : China

MOQ : 2

Price : Negotiable

Payment Terms : TT, LC, Western Union

Supply Ability : 1000 pieces/month

Delivery Time : 7~15 days

Packaging Details : Plates with Carton

Data rate : 400G

Wavelength : 850nm

Distance : 100m

Connector : MPO-16

Form Factor : OSFP

Temperature : 0~70°C

DDM : Yes

Warranty : 3 years

Label : Can Be Customized

Protocols : MSA

Application : Data Center Interconnect

Technology : Parallel Optics

Contact Now

400Gb/S OSFP SR8 100m MMF OM3 Module With FEC & MPO-16 Connector

This product is a parallel 400Gb/s Octal Small Form-factor Pluggable (OSFP) optical module. It provides increased port density and total system cost savings. The OSFP full-duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.

An optical fiber cable with an MTP/MPO-16 connector can be plugged into the OSFP SR8 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.

Key Features
  • OSFP MSA compliant
  • 8 parallel lanes on 850nm center wavelength
  • Compliant to IEEE 802.3bs Specification
  • Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
  • Operating case temperature: 0 to 70oC
  • 8x53.125Gb/s electrical interface (400GAUI-8)
  • Data Rate 53.125Gbps (PAM4) per channel.
  • Maximum power consumption 12W
  • MPO-16 connector
  • RoHS compliant
Application
  • 400G Ethernet
  • Infiniband interconnects
  • Datacenter Interconnect
  • Enterprise networking
Product Details
Parameter Symbol Min Typical Max Units No
Operating Case Temperature TOP 0 　 70 degC 　
Link Distance with OM3 D 0.5 　 100 m 　
Power Consumption 　 　 　 10.5 W 　
Center Wavelength λC 840 850 860 nm 　
Average Launch Power, each
Lane		 PAVG -6.5 　 4 dBm 　
Outer Optical Modulation
Amplitude (OMAouter), each
Lane		 POMA -4.5 　 3 dBm 　
Average Receive Power, each
Lane		 　 -8.4 　 4 dBm 　
Receiver Sensitivity
(OMAouter), each Lane		 SEN 　 　 RS = max(−6.5, SECQ − 7.9) dBm dBm 　
