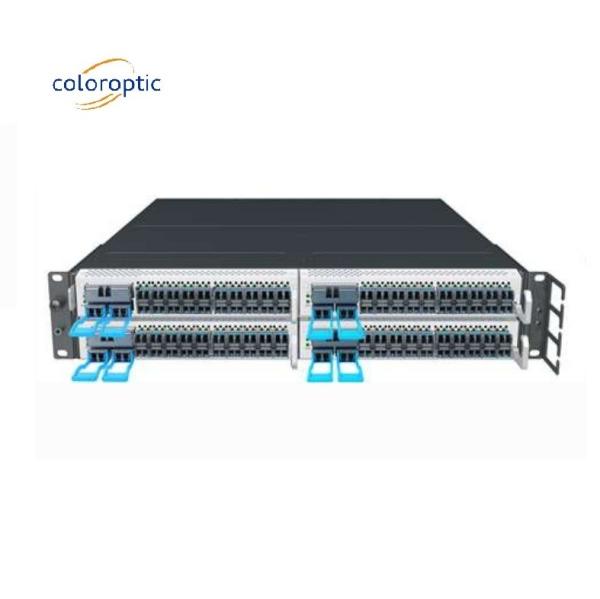

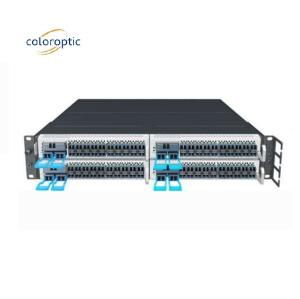

Core Network Switch For Data Center Interconnection With Transponder & Optical Line Modules And Muxponder Modules
Product Description:
T512 data center interconnect and metro core network products are industry-leading, modular, disaggregated, high-capacity next-generation optical transport equipment. Its flexible networking capabilities, variety of service interfaces, multiple power suplliers and make it suitable for large, medium and small data center interconnection, metro and wide area networks, as well as enterprise networks and computing center interconnection and backup. The equipment can form point-to-point WDM transmission and single span or multi-span or regeneration networks, FOADM or ROADM linear networks as well as full-mesh ROADM networks.
Features:
- 2RU chassis with 480mm in depth, supporting 4/8 service slots. The air flow from the front to back in and backward. The same chassis for both transponders and optilcal line system.
- Supports 220V AC, high voltage DC, 48V DC power suppliers.
- Support redundancy of main control, power supply and fan.
- Single chassis support total 3.2T transmission capacity with 200G/400G per wavelength coherent optical transmission technology in the modulation format of QPSK, 16 QAM and other coding modes.
- Support 100GE, 100GE FlexE, OTU4, 10GE, OTU2, STM64, 10G WAN, 8G~32G FC and other service interfaces.
- Flexible optical layer, support 48/96 waves, FOADM, and ROADM with tunable channel spacing 50GHz/75 GHz/100 GHz.
- Support online OTDR/OCM diagnosis and 1588 clock synchronization
- Support protection of OTS, OMS, and OCH with absolute and relative threshold value
- Unified network management, providing NETCONF / CLI / TELEMETRY / OpenConfig for easy integration with 3rd party system.
Technical Parameters:
TECHNICAL SPECIFICATIONS Physical Dimensions - 88 x 440x 480mm (h×w×d)
- Width: 19/21 inch rack
- Height:2U
System Configuration and Modularity - Eight single slot sleds or four dual-slot sleds
- All slots are field replaceable and hot swappable
- Same chassis for both transponders and OLS
Line Side Interfaces - Support 200G QPSK codec, pluggable CFP2-DCO
- Support 400G 16 QAM codec, pluggable CFP2-DCO
- Support 191.3~196.1THz,50/75/100G spacing
Client Side Interfaces - Support 4xQSFP28, 2xQSFP28, 20xSFP+,1x QSFP28 + 10xSFP+ and etc
- Support 100GE / 100GE FlexE / OTU4 / 10GE / OTU2 / STM-64 / 10G WAN / 8G FC / 10G FC / 16G FC / 32G FC and etc.
Optical Line Modules - Optical terminal and line applifiers support 8~15dB, 15~25dB,22~35dB gain
- Support inline OCM,OTDR monitor with 1% tap
- Support Optical Supervision Channel (OSC)
- Support TFF-based 10 types of 4-channel FOADM
- Support twin 9D WSS ROADM
- Support OTS,OMS,OCH protection
- Support protection based on relative and obsolute threshold values with switch time less than 10ms
|
Electrical Power and FANs - AC power:90～264V 50/60Hz
- DC power:-36～-72V
- 240VHDC: 180～300VHDC
- 1+1 PSU redundancy and field-replaceble
- 2+1 FAN redundancy and field-replaceble
- Air flow: Front-to-back straight-through
Timing and Synchronization - Support IEEE 1588-2008； IEEE 1588-2019
- Support ITU-T G.8271.1 , G.8273.2, G.8275.1/2, G.8261/62/63/64
Management and Console Ports - RJ-45 Network Management interface
- YANG-based Netconf API
- CLI / SNMP / TNMS
Regulatory and Compliance - RoHS10/REACH/WEE
- IEC/EN 60950-1, IEC/EN 60825
- EN55022/EN55024,IEC 61000-3/ IEC 61000-4
- Laser Safety: IEC 60852 Class1/2
Enviormental - Working Temperature:-5℃～+55℃/23°F～131°F
- Storage Temperature:-40℃～+85℃/-40°F～185°F
- Humidity:5%～90%
|
Applications:
Typical application 1: Multi-span point-to-point data center interconnection - 200G QPSK coherent transmission over typical 1500km fiber
- 400G 16QAM coherent transmission over typical 600km fiber
- Maximum link budget of 32dB for 120km per span
- Variety service interfaces of 100GE / 100GE FlexE / OTU4 / 10GE / STM64 / 10G-WAN / 8G~32G FC signals
- Support YANG-based APIs, which can be managed by T010 network management or third-party SDN controller
|

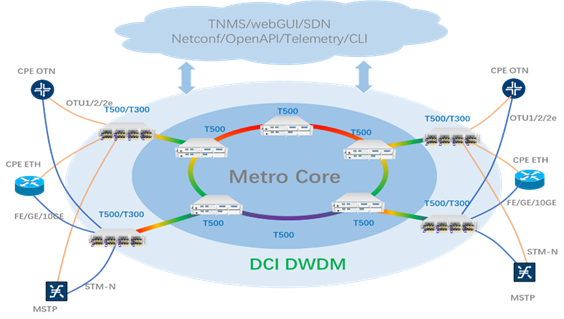

Typical application 2: Ring-based metro core network - Aggregate 100GE / FlexE / OTU4 / 10GE / OTU2 / Fiber Channel and low-speed services into 200G/400G per wavelength transmission
- Support FOADM/ROADM linear or ring DWDM network
- Support 48/96 wavelength dual-fiber optical line protection
- Support 100M / 1Gigabit management channels with OSC
- Support inline OCM/OTDR monitoring
- Support east-west 1588 clock synchronization
- Support YANG-based APIs, which can be managed by T010 network management or third-party SDN controller
|
